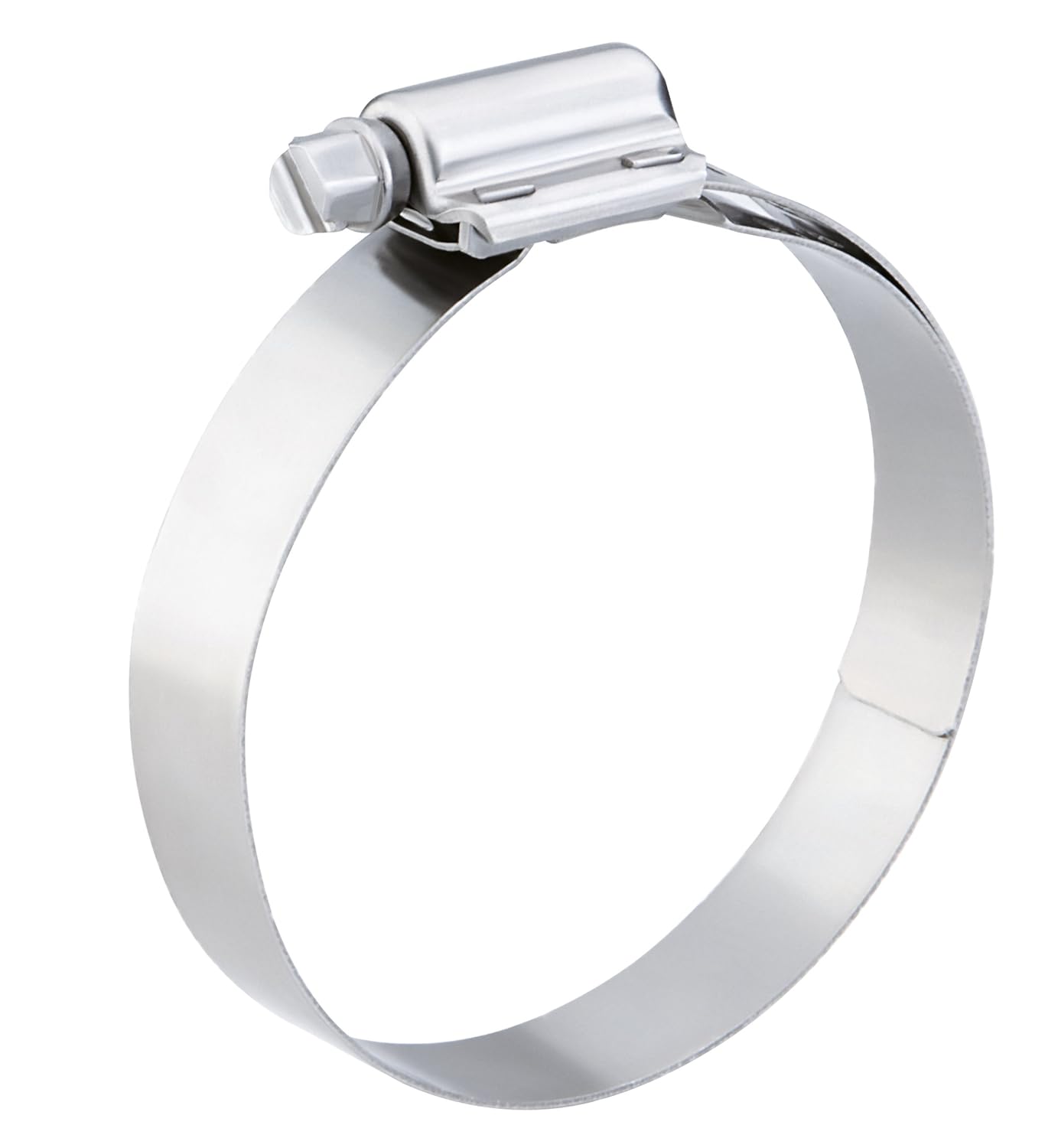

Hi-Torque Hose Clamp w/ Liner
The strongest worm-gear clamp made in the world today. Withstands more than 3 times the SAE torque requirements for Type F worm-gear clamps. Eight screw-threads are engaged in the band simultaneously for an incredible torquing drive (over 150 in.lbs.), sealing pressure, and vibration resistance.
| Part# | Size | Range (Inches) | Range (MM) |
| 175 | HTM 175 L | 1 - 1 3/4 | 25 - 44 |
| 200 | HTM 200 L | 1 1/4 - 2 1/8 | 32 - 54 |
| 250 | HTM 250 L | 1 3/4 - 2 5/8 | 45 - 67 |
| 300 | HTM 300 L | 2 1/4 - 3 1/8 | 57 - 79 |
| 350 | HTM 350 L | 2 3/4 - 3 5/8 | 70 - 92 |
| 400 | HTM 400 L | 3 1/4 - 4 1/8 | 83 - 105 |
| 450 | HTM 450 L | 3 3/4 - 4 5/8 | 95 - 117 |
| 500 | HTM 500 L | 4-1/4 - 5-1/8 | 108 - 130 |
| 550 | HTM 550 L | 4-3/4 - 5-5/8 | 121 - 143 |
| 600 | HTM 600 L | 5-1/4 - 6-1/8 | 133 - 156 |
| 650 | CT 650 L SS | 5-3/4 - 6-5/8 | 146 -168 |
| 700 | CT 700 L SS | 6-1/4 - 7-1/8 | 159 - 181 |
| 750 | CT 750 L SS | 6-3/4 - 7-5/8 | 172 - 194 |
| 800 | CT 800 L SS | 7-1/4 - 8-1/8 | 184 - 206 |
| 850 | CT 850 L SS | 7-3/4 - 8-5/8 | 197 - 219 |
| 900 | CT 900 L SS | 8-1/4 - 9-1/8 | 210 - 232 |
